Welcome to another tutorial blog!  This week we are bringing you a tutorial to use with our new Crafty Vinyl – this has been exclusively created for you to use without your cutting mat on your Silhouette and Cricut machines. Although it can also be used on your machine’s cutting mat should you wish, please test cut and reduce the settings accordingly, as per the individual instructions for creating a custom setting for your machine.

This design can be used in a variety of ways, including using it with HTV to create a canvas, dog bed, or blanket, or cutting it out of self adhesive to create a window display too. Cut it out of Self Adhesive or HTV Vinyl or use it with our A4 card available in a huge variety of styles here.

This design can of course be used for adults, kids, and you can use it for almost anything that you wish to personalise with a Doggy theme!.

We would love to see what you make!  Have you found our  You Tube channel yet? The video showing this and all of our other tutorials are  available on there, as well as exclusive demos, inspiration and more!  Join us on Facebook , Instagram or Tiktok or  send us an email to [email protected] we would love to hear from you!

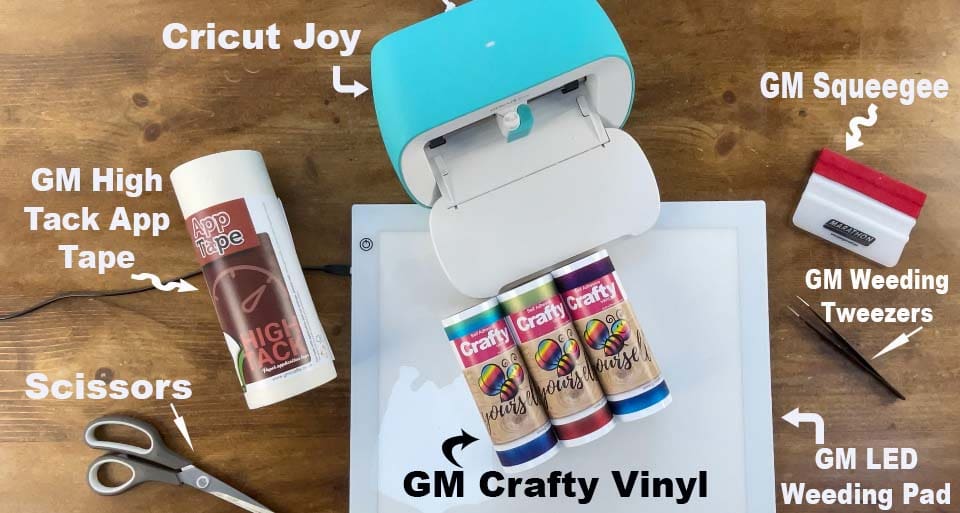

What you’ll need:

  • Cricut Joy, or Cricut Maker 3, or Explore 3  . Available here
  • Or Silhouette Cameo 4. or Portrait Available here
  • GM Crafty Vinyl Available  here
  • Squeegee.  Available here
  • Weeding tweezers . Available here
  • App tape Available here
  • Scissors from your own stash.
  • Rubbing alcohol and lint free cloth should you wish here
  • Cut files, are free below! Including Silhouette Cricut and Brother instructions to follow at the end.

Let Sleeping Dogs Lie cut files click here to download

JOY crafty vinyl what you need


1. Before you start you will need to download the cut files for your chosen machine, link above. Unzip the file to use it by right clicking it in your downloads.

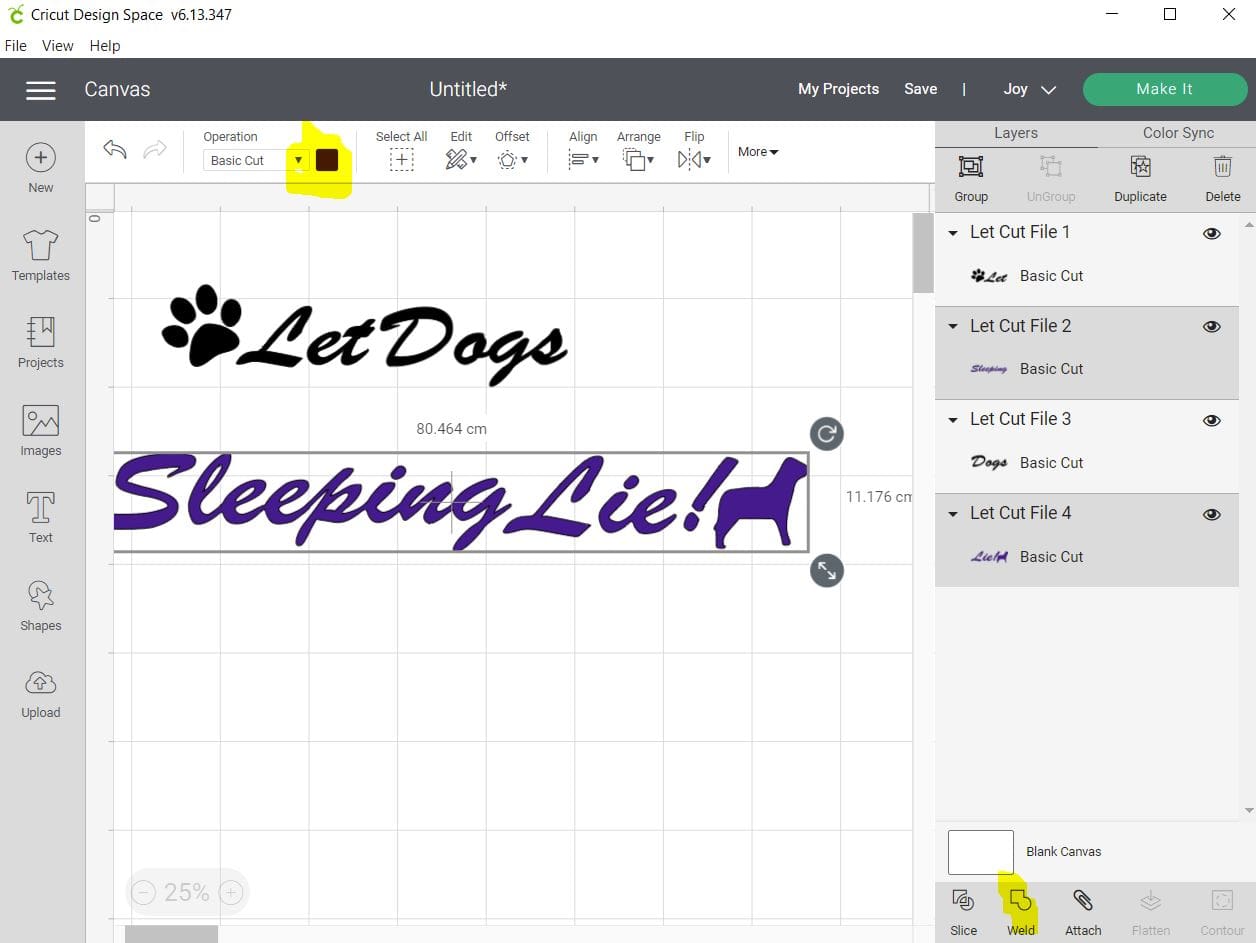

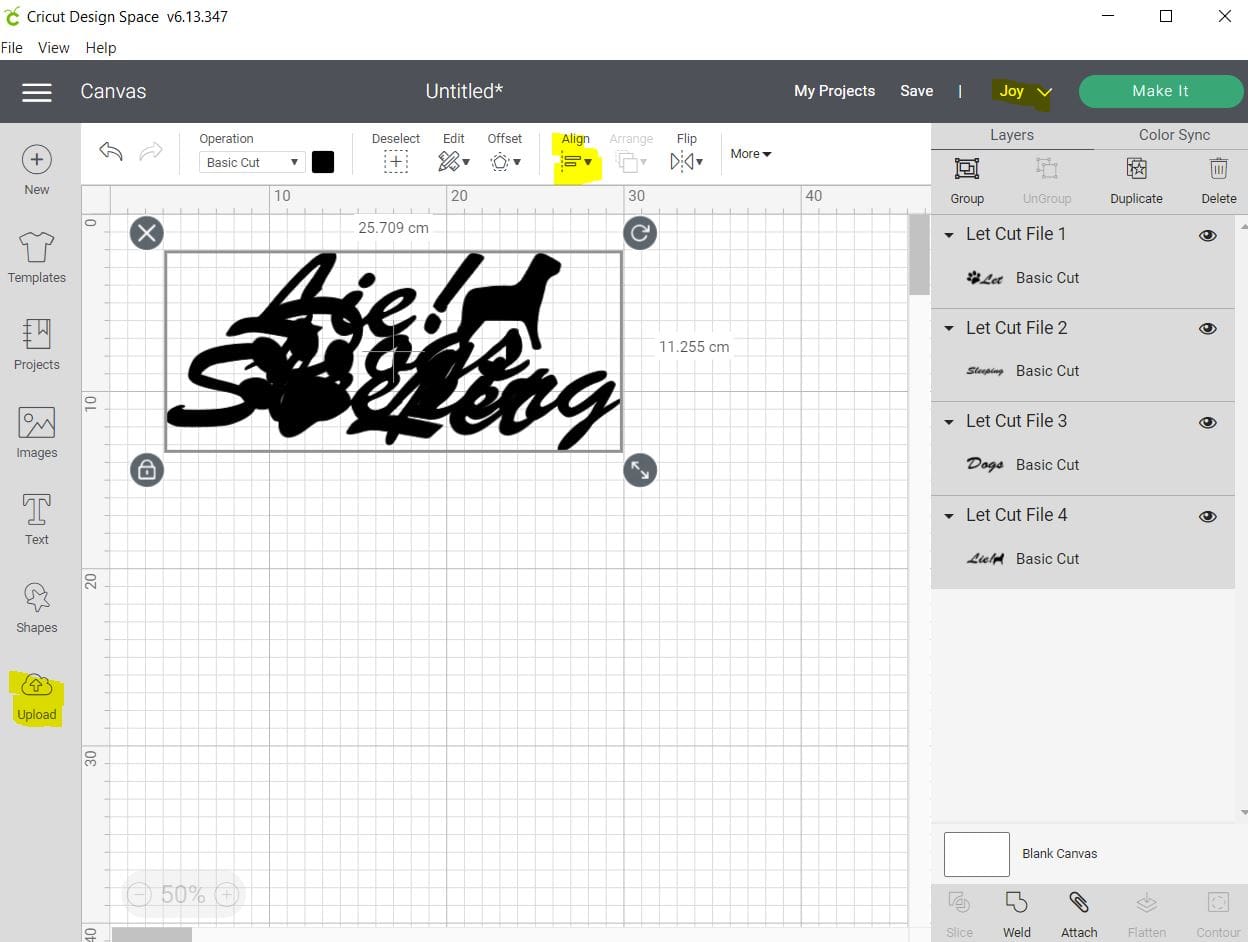

2. Upload each PNG into the design space. Click “Upload Image” marked yellow below  on the left-hand Design Panel, and navigate to the  files you want to open. Select ‘Insert image’ and select image type ‘simple’ when prompted. Next you’ll be asked to delete any space that does not get cut, you can skip this part by pressing ‘continue’. When asked if they’re print-then-cut images or just cut images, select cut images. Click save. When it has been uploaded, Insert the images onto the canvas and resize to suit your project.

Because I am using the Joy and 2 different rolls of our crafty vinyl, I have joined 2 layers together, which are then cut before applying, so I put line 1- “let” with line 3 “Dogs”, and then line 2 “sleeping” with line 4 “Lie” together, as I am using 1 meter each of 2 different patterns, to create my final design.

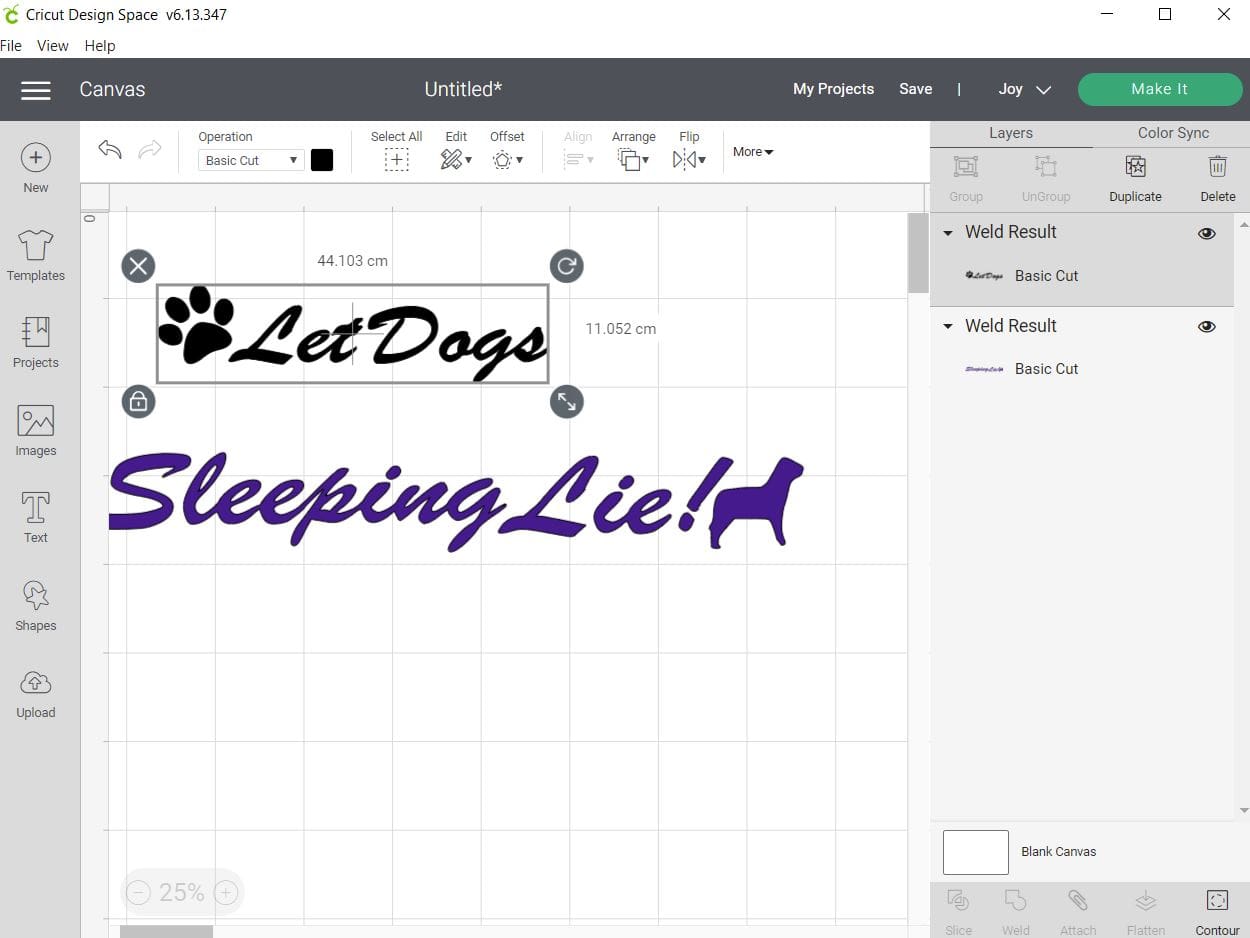

I centre the designs using the Centre alignment tool as shown below in Yellow, then recolour each one differently, so I can cut the different Vinyl for each layer, which means I don’t have to keep returning to the design page. Once you have chosen the files that you are cutting from the same continuos roll, you would need to weld them so the software knows to do this, see below, then click make it to move on to the next screen. On the next screen, If using the Cricut Explore 3 or Maker 3 then you will need to choose to cut without the mat.

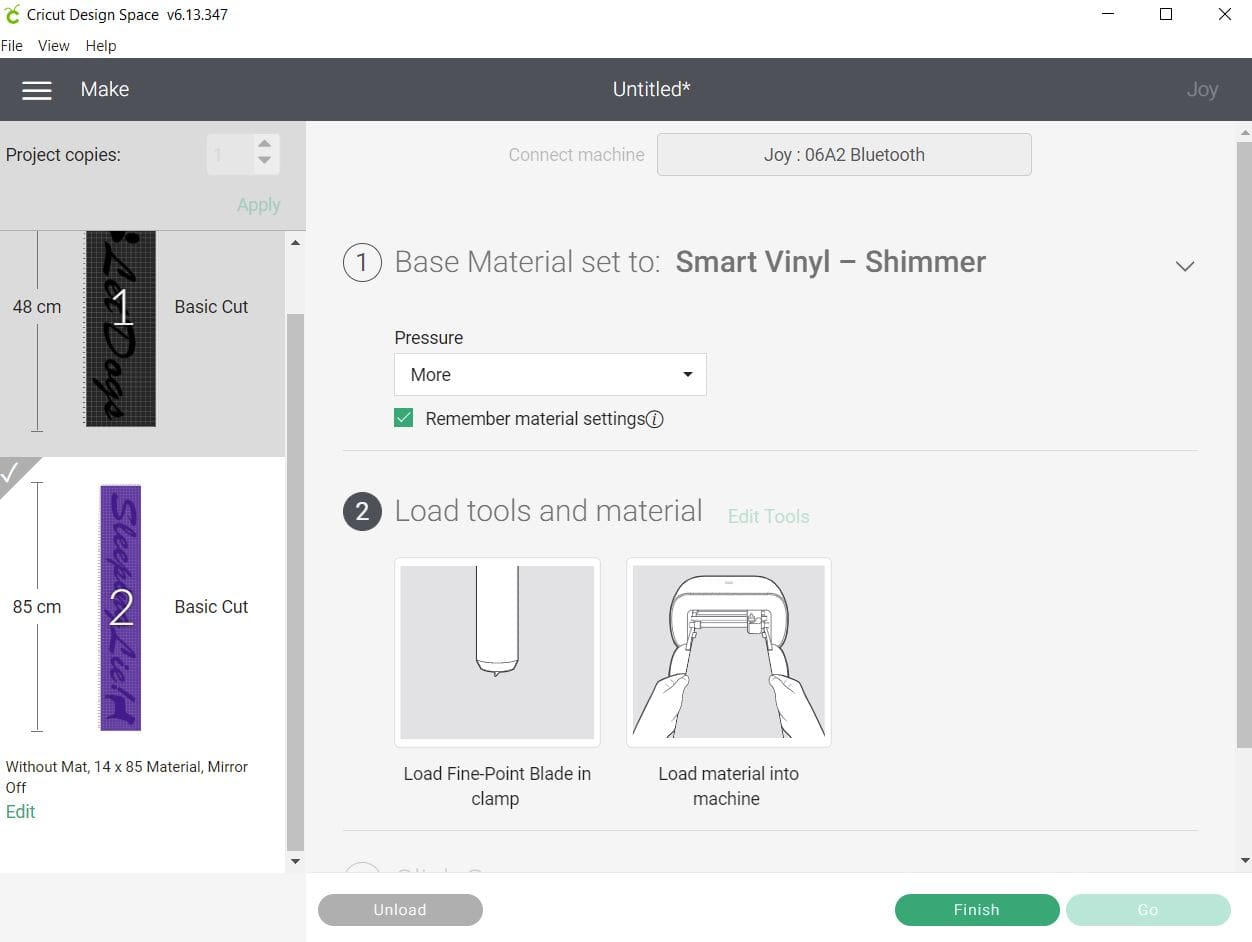

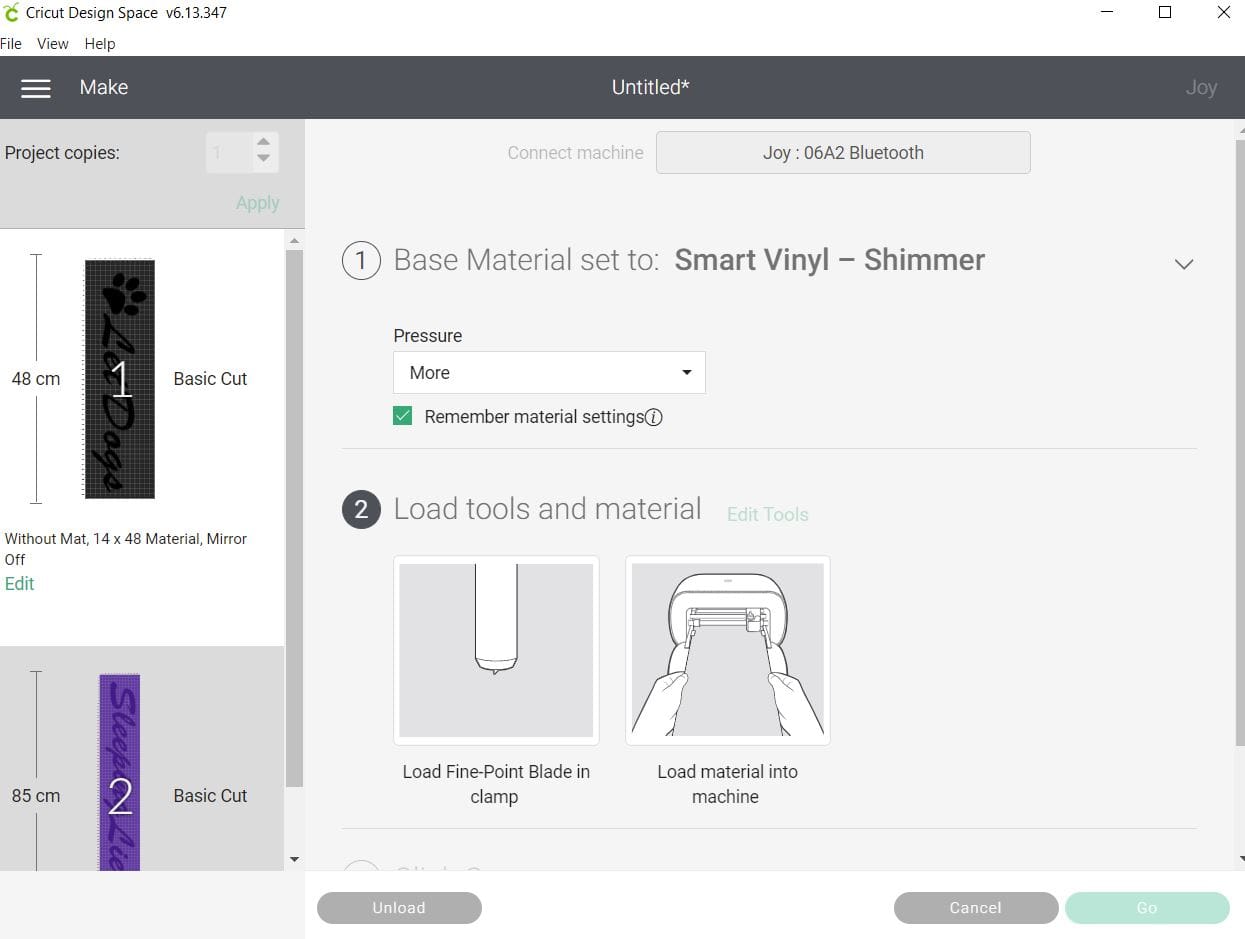

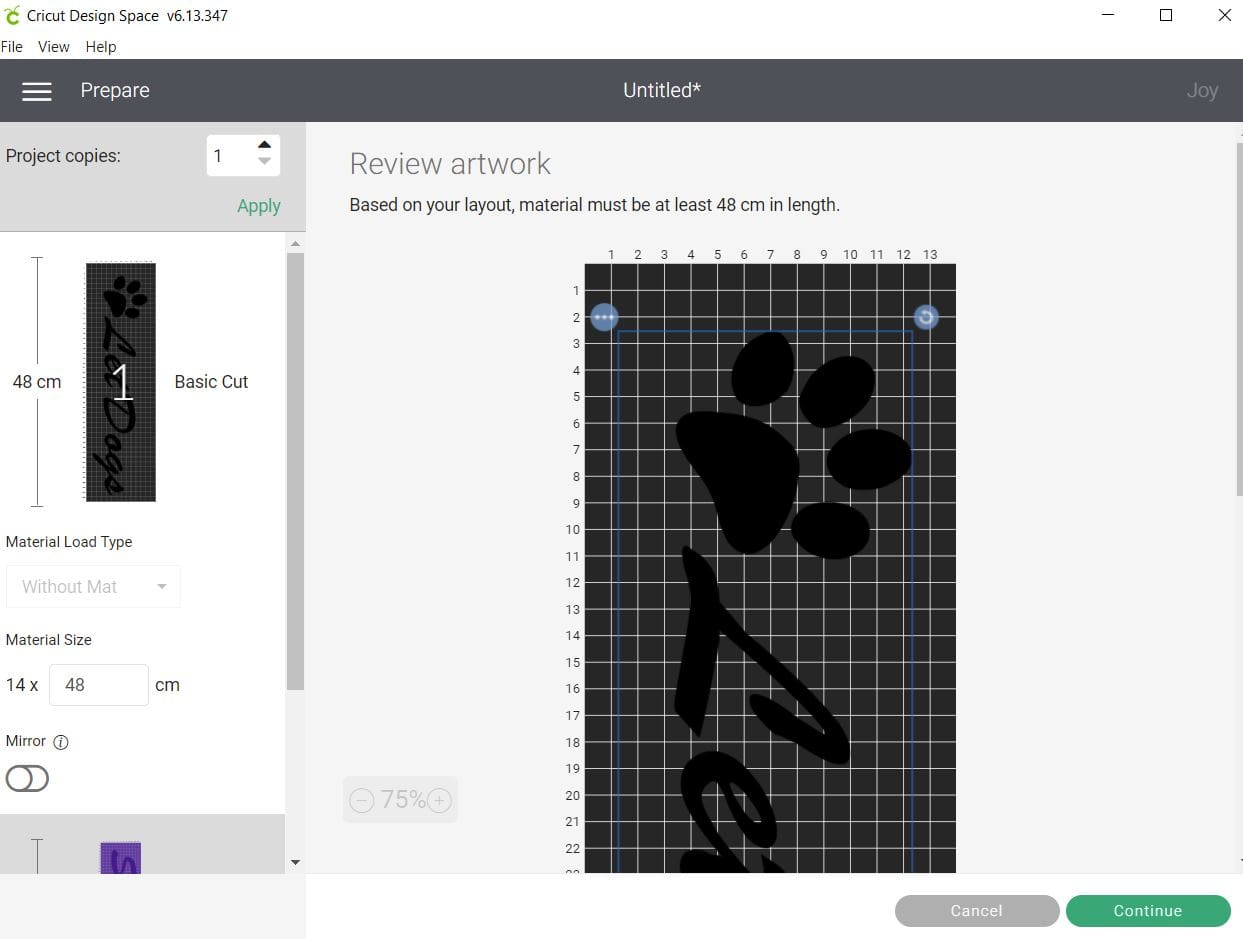

3. When on the next screen below, check the design area is as you expect- it will also tell you in the left hand column the material size required for the cut.  Click continue in the bottom right on the next screen. In the next window make sure your settings are all set to the successful settings from your test cut and ensure your machine is linked before proceeding to cut. Cut settings: (**please test cut) Apply the settings needed for your chosen Vinyl, we made it with our GM Crafty Vinyl, without the mat, on the cut setting- Smart Vinyl- Shimmer  with Default pressure. More pressure pushed the vinyl too hard into the backing, the settings page screenshot below is for illustration only, and the setting you need is default.  If you are using a mat or a different machine, please adjust your settings and remember to test cut a small shape first.

**A reminder that these settings, including the blade setting, are specific to the materials and machine we’re using, adjustments may be necessary if using different materials and machine**

We always recommend before proceeding, you test cut your materials when first using so if you have not recently used this product in your machine. Please test cut for your chosen machine found on our Application guide, and also Blog.  Load the Vinyl chosen individually for each layer.JOY STEP 4

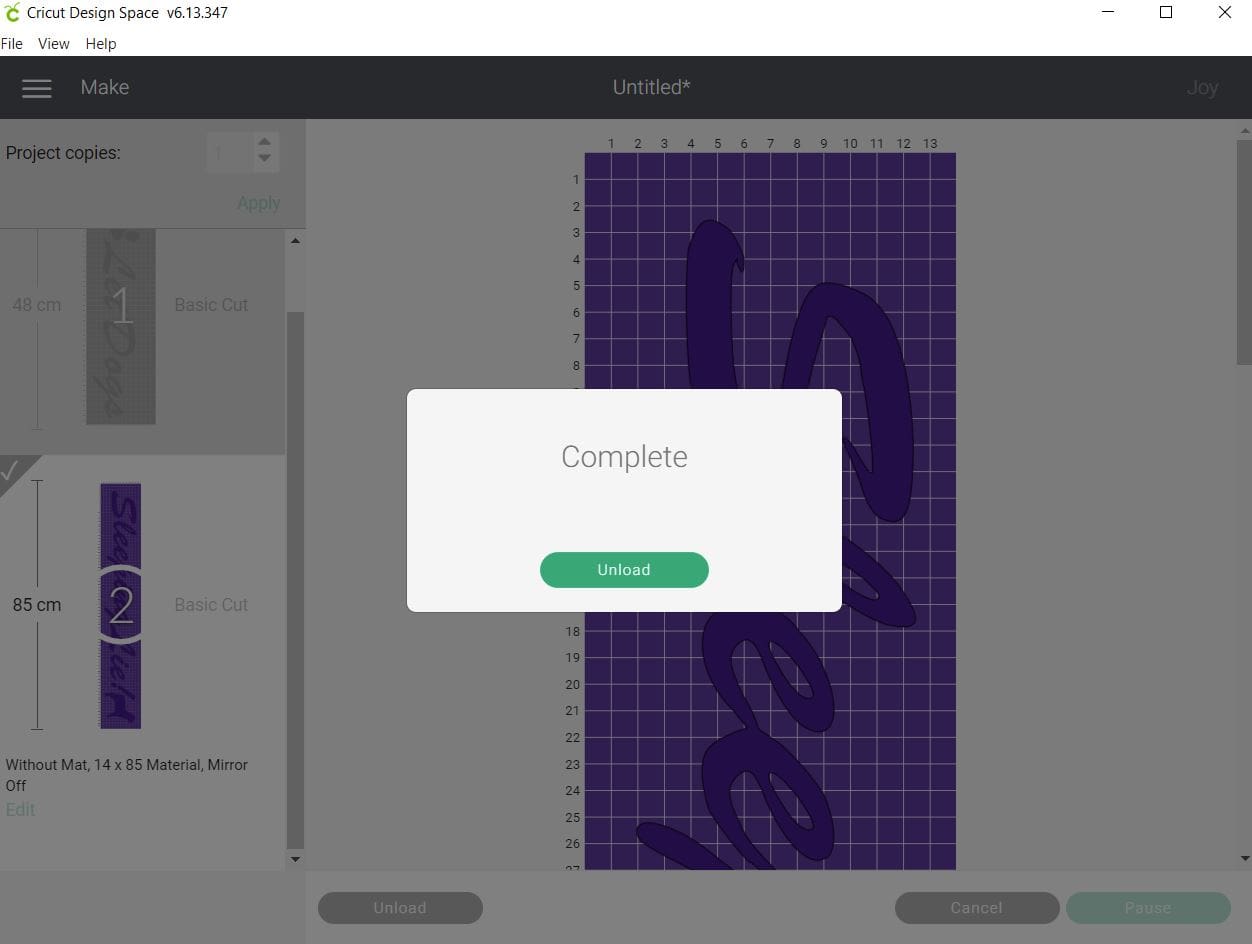

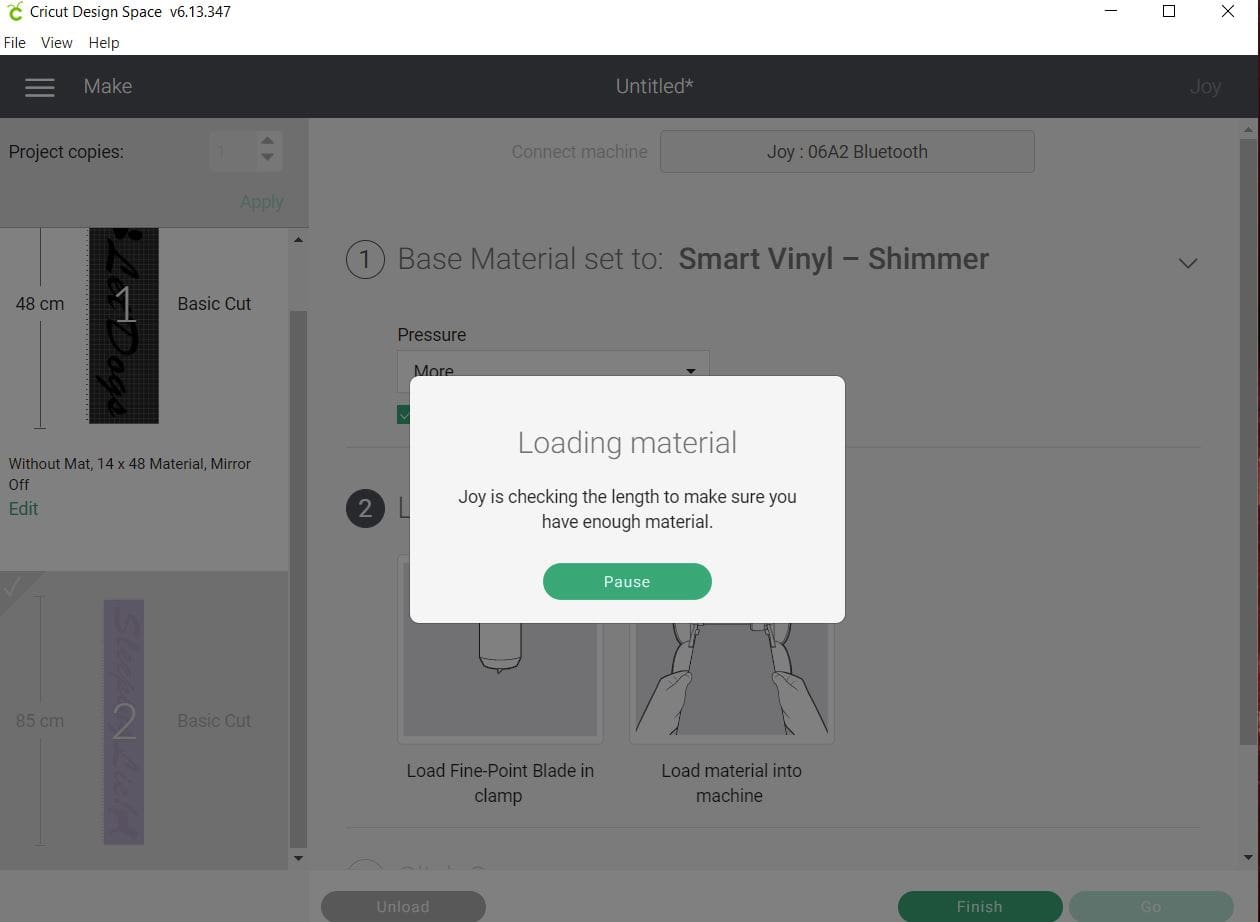

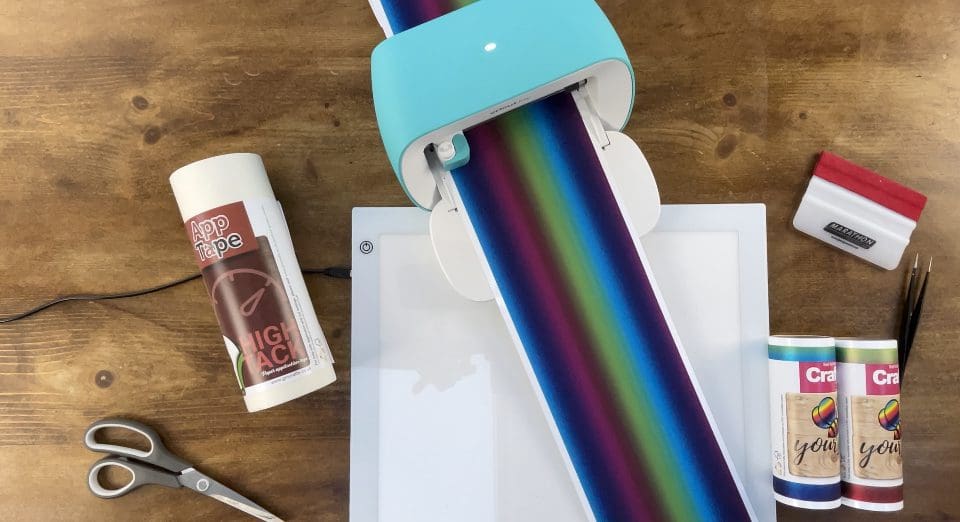

4. Take your roll of chosen Crafty Vinyl and load it into the Joy, addressing it to the front of the machine once you have the settings as per the above screen, the Joy will automatically load it for you, and proceed to checking the length of material will suit the design you have ready to cut. It will then need you to click GO once it has scanned the length, and will cut the design, once cut the machine flashed and waits for you to click the unload button on the screen once completed. See below.

52F48B16-1FB3-4123-BAA1-4E5DF778AC23_1_201_a 57E990E1-F45F-4A19-AF74-52D608538790_1_201_a JOY STEP 6A JOY STEP 7

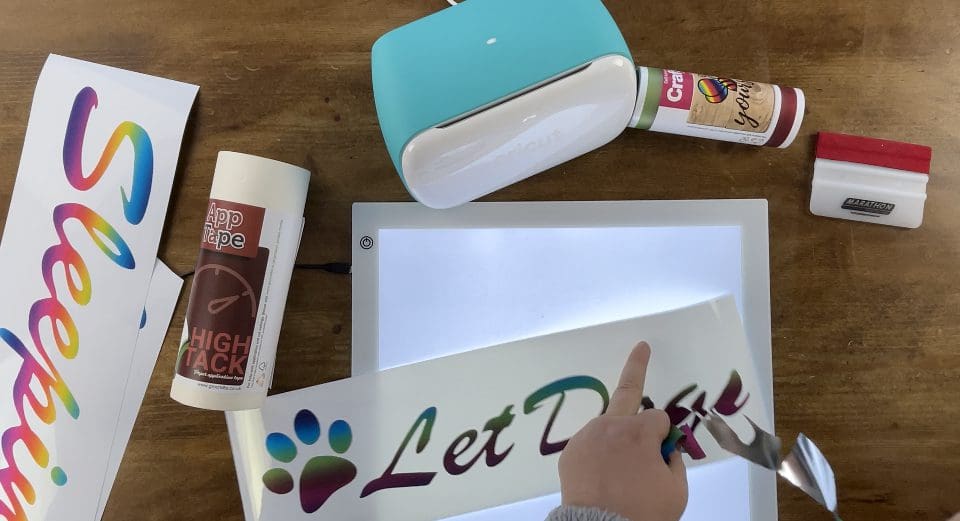

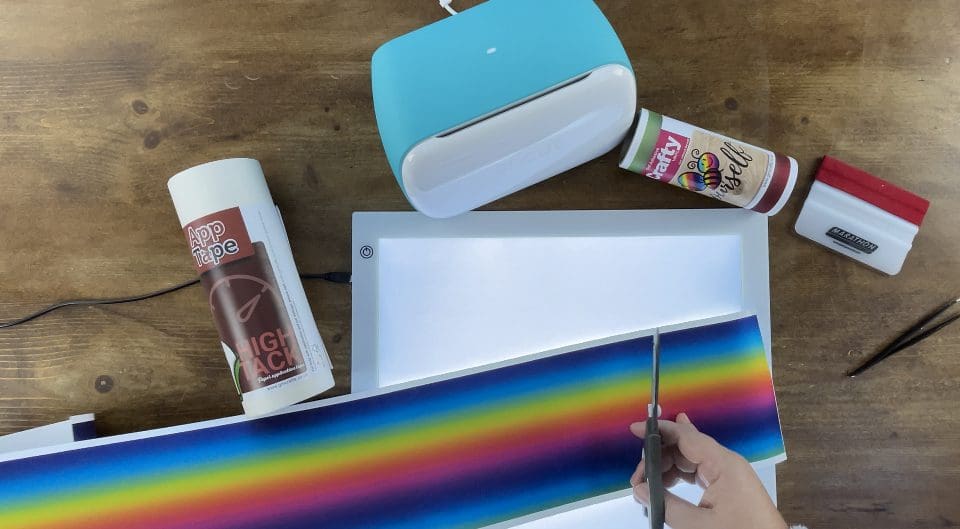

5. Once you have repeated step 4 for both rolls of vinyl, you will need to cut the unused vinyl from the sheet to save waste, remember if you wish to use any left over on your mat, you will need to adjust your settings. Switch on your LED weeding pad, and proceed to remove any excess vinyl, leaving the design only behind on the carrier sheet. Remember the backing sheet once the vinyl has been removed is fully recyclable and can go into your household recycle bin.

A5208865-4202-4753-951E-6391245C1B69_1_201_a E47C1EEE-8501-4C58-9D7B-8DB614887935_1_201_a 9A48EB86-AFC2-44A1-8838-14B319156DDB_1_201_a

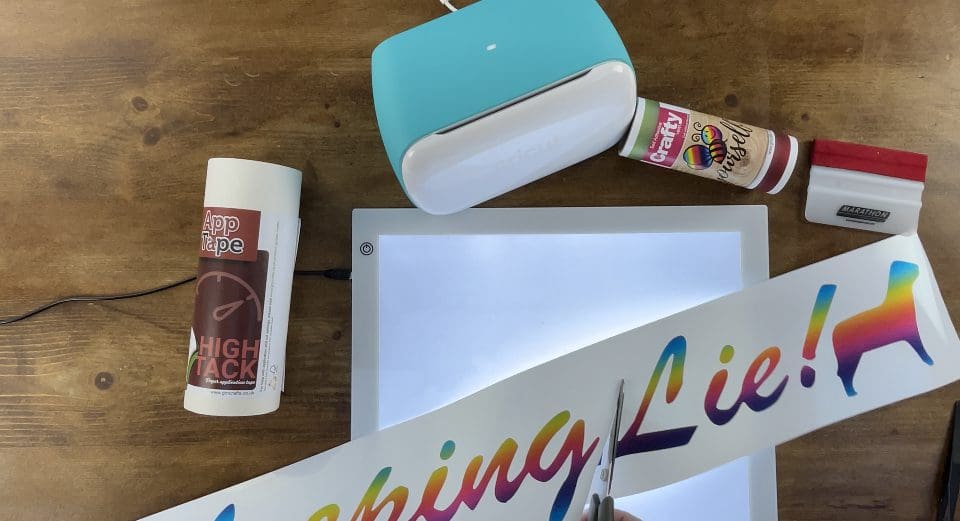

6. After weeding you can use your scissors to cut each layer from the ones you welded it to, so you have 4 lines to apply later. See below.

D42528A8-8648-46FC-A84C-A9A39D2D6B81_1_201_a 7E5AD961-D044-4D49-B4DB-52E4BBE34C5C_1_201_a EF739013-A253-4B02-8856-C999C16D5696_1_201_a

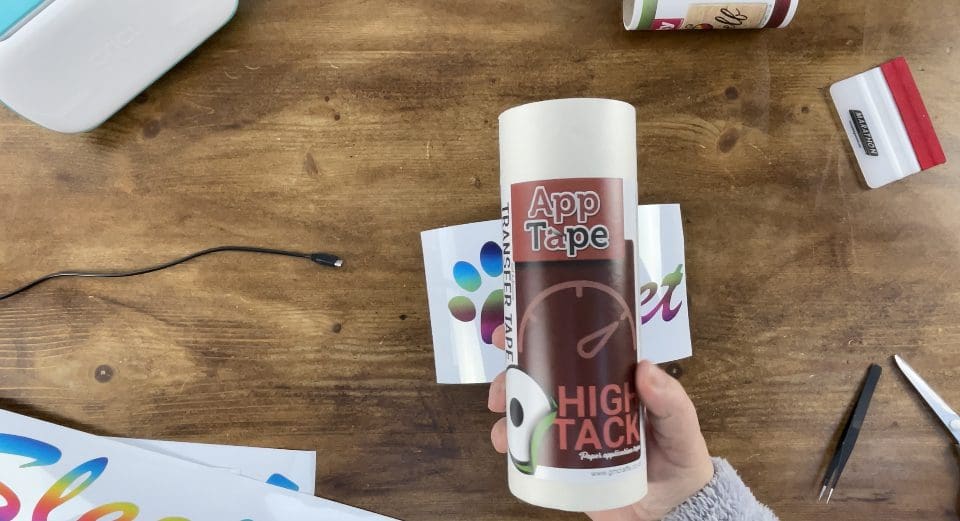

7. Once all 4 lines have been weeded and cut to form each separate line again, it is time to use the App tape ready to transfer it. Because this is a very heavy metallic type vinyl, you will need to use our High tack App Tape. Once weeded. Take your transfer tape and lay it with the sticky side facing up on the table. Place the design onto the sticky side face down, then trim the application tape from the roll to fit. Take your squeegee and rub the back of the vinyl hard to transfer it onto the application tape. Lift the backing paper that had the vinyl attached to it, back upon itself ready to apply.

D04005E1-4889-4588-91A7-48AB71977AEA_1_201_a 2352C534-5765-42A9-8193-F17233FE378A_1_201_a 252FEAD4-AAA7-4BEF-9547-3C66093FA7F7_1_201_a D8BC1AE6-8E23-419C-9A21-9C17BDA0F3DC_1_201_a 3C92D6B0-742C-443C-8681-7571CC4498A3_1_201_a

8. Unlike most vinyl, you will need to work hard to get this to transfer as the design is big, and the vinyl has rigidity as well as being metallic, if you struggle to transfer, re rub hard on the back, and gently roll back the backing as shown below, using your finger or thumb to ease it off gradually as you roll the backing sheet away- a little patience and repetition will get this transferred.

19B37859-075B-41E9-AEF2-9AA0E69C5CAB_1_201_a 7FEF1223-A704-46EE-943F-34C7A6092F91_1_201_a

9. At this point we would normally advise you to use rubbing alcohol to degrease and prepare the surface, we are applying this to a wall. please be aware permanent vinyl when removed can lift some paint- we advise using a hairdryer first to melt the adhesive before removal, however all walls can vary and some paint damage when using permanent vinyl can occur, so please do take it off carefully and slowly with heat, and residue can then be gently removed with wd40.

When applying vinyl to walls, be aware Damp or uneven walls will be very difficult to apply to, fresh paint needs to degas to prevent it bubbling afterwards, please refer to the manufacturer for their recommendation, flaky paint or plaster, will not allow easy removal, please take a look at the Oracal 638 wall vinyl here which is designed for walls and easy removal. Alternatively apply to a canvas which you can then take with you if you move or change the room design it can be used elsewhere.


10. Once you are happy to proceed with application, place the first line on the wall, and use your squeegee to smooth the vinyl on to the wall applying pressure as you go to activate the adhesive. I remove the app tape immediately so not to damage the paint.74FCC9D6-AFEC-4103-A4E5-00CC32071F13_1_201_a 22C90480-0C75-438A-A4AC-B2BC895087A2_1_201_a EA90944E-7F6B-4CF4-A74C-EB96D1A800DF_1_201_a

11. Proceed to apply each layer, removing the app tape as quickly as possible before the next layer, once you are happy with the placement, smooth our any edges or creases with your squeegee.

4E7E2FD0-CE1F-4C45-87F7-6FC824FC0EEA_1_201_a4B329E61-A3F7-41D4-ACA9-ED95D54A5CA4_1_201_a C582FC63-F275-4DAC-84C6-1C67C9C0A03D_1_201_a 4F620A69-85DA-4D13-9F8D-0A8D6918CC44_1_201_a 403DF7FD-8612-442E-81EC-CD2C18B313D9_1_201_a 5CDCAA0C-B8A3-4824-B359-E1F19E2FA426_1_201_a CF4A5DC7-AFE5-4EB1-A665-C5CE7BE9E429_1_201_a 7A3CF526-3F91-40DE-9C4B-17E733529686_1_201_a 2C6326A6-C829-4BEA-A639-3C4F24B2EDB0_1_201_a

Don’t forget your finished design can be matched by using any material cut using a cutting file, card, self adhesive vinyl or even HTV. We’d love to see your makes on our social media pages! Or email them in!




Before you start, you need to download the cut file,  Upload the cut file into Silhouette Studio and resize as necessary,  (when resizing bring all  layers into the design software and select all  at once to get the correct offset layers and save the adjusted file, so you can cut layers individually at that correct scale you have chosen) Remember to test cut if necessary and cut settings are found here along with test cut guidelines for every machine.

Brother Scan and Cut

To import these files into the Brother Canvas Workspace:

After downloading, please log in as usual to your design space account, open a new project mat, then left click on the SVG  icon in the top left bar in canvas, this will then allow you to import your files. Once you left click this icon, a pop up box appears with you to choose where to import file  from, choose to import the file from your downloads list or where you have chosen to save when unzipped.

Reminder – Test cut! Cut settings are found here
