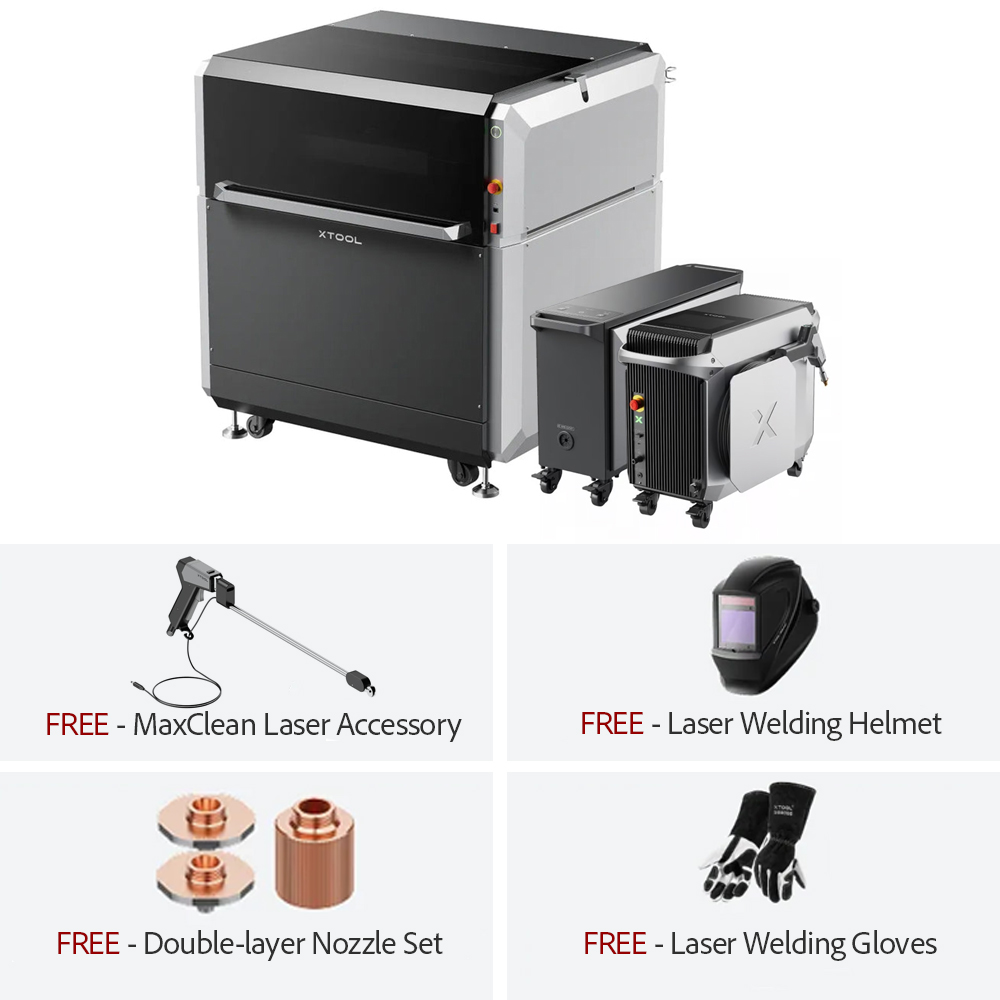

xTool MetalFab Laser Welder 1200W & CNC Cutter

xTool MetalFab Laser Welder & CNC Cutter 1200W – All-in-One Metal Cutting, Welding & Engraving Machine

xTool MetalFab Laser Welder and CNC Cutter 1200W takes your metalwork to the next level. This all-in-one powerhouse is built for precision, speed, and versatility—perfect for cutting, welding, and engraving metals like stainless steel, aluminium, carbon steel, brass, titanium, and more. Whether you’re a seasoned expert or just getting started, the xTool MetalFab delivers clean results every time. xTool MetalFab supports engraving on stainless steel, galvanised steel, titanium, and coated metals like anodised aluminium.

It supports:

• Vector engraving
• Vector fill
• Bitmap fill

Use xTool Creative Space (XCS) for easy, one-click setup. For safety, avoid engraving high-reflectivity metals such as copper.

Cut, Weld, and Clean Various Metals with Ease

To ensure optimal performance, different gases are recommended for each process:

• Welding: Use nitrogen or argon (purity ≥99.99%) for most metals. Welding pressure should be 0.1–0.2 MPa, with a gas flow of 15–30 L/min. Argon is essential when welding titanium alloys.

Cutting: You can use compressed air, nitrogen, argon, or oxygen. When using the xTool air compressor and refrigerated dryer together with the SaveGas™ Nozzle, you’ll get burr-free cuts at 0.6 MPa for:

Alternatively, nitrogen or argon at 1.2 MPa achieves the same burr-free precision. Oxygen, on the other hand, is ideal for cutting thicker carbon and galvanized steel—up to 10mm when using a dual-layer nozzle and focal extension tube (0.06–0.07 MPa).

• 4mm stainless steel
• 4mm aluminium
• 3mm copper
• 1mm carbon steel
• 1mm galvanised steel

Cleaning: Compressed air is effective, though nitrogen or argon provides a brighter, oxidation-free finish.

xTool MetalFab with Dual Smart Cameras

What sets the xTool MetalFab Laser Welder and CNC Cutter 1200W apart is its dual-camera system:

• A 16MP panoramic camera scans the entire bed for full-view imaging. With Smart Nesting, it maximises material use—up to 98.7%!

• A close-range camera ensures micron-level precision, ideal for fine secondary processing.

This intelligent system helps you reduce waste and boost productivity—something no standard system without cameras can match.

Metal Cutting and Welding Performance: 1200W vs. 800W Models

The 1200W model offers superior capabilities compared to the 800W version:

• Welding: Weld up to 5mm stainless steel or carbon steel (vs 4mm with the 800W)
• Handheld Cutting: Cut up to 5mm with 1200W, while 800W handles up to 3mm
• Design: The 1200W model includes an external wire feeder, while the 800W unit features a built-in feeder and lighter frame

Easy to Use – Even If You’re New to Laser Welding

The xTool MetalFab is incredibly beginner-friendly. With the lightweight 550g welding gun featuring a 5-second quick-release, plus an 8-inch touchscreen loaded with 108+ one-click presets, you’ll be welding like a pro in just minutes.

In fact, the system is SGS-certified, meaning the weld quality meets international safety and strength standards.

Power Requirements for the xTool 1200W MetalFab

To operate at full capacity (4200W), the xTool MetalFab requires a 200–240V power supply with a maximum 21A current. We recommend an independent 220V–21A circuit or greater.
