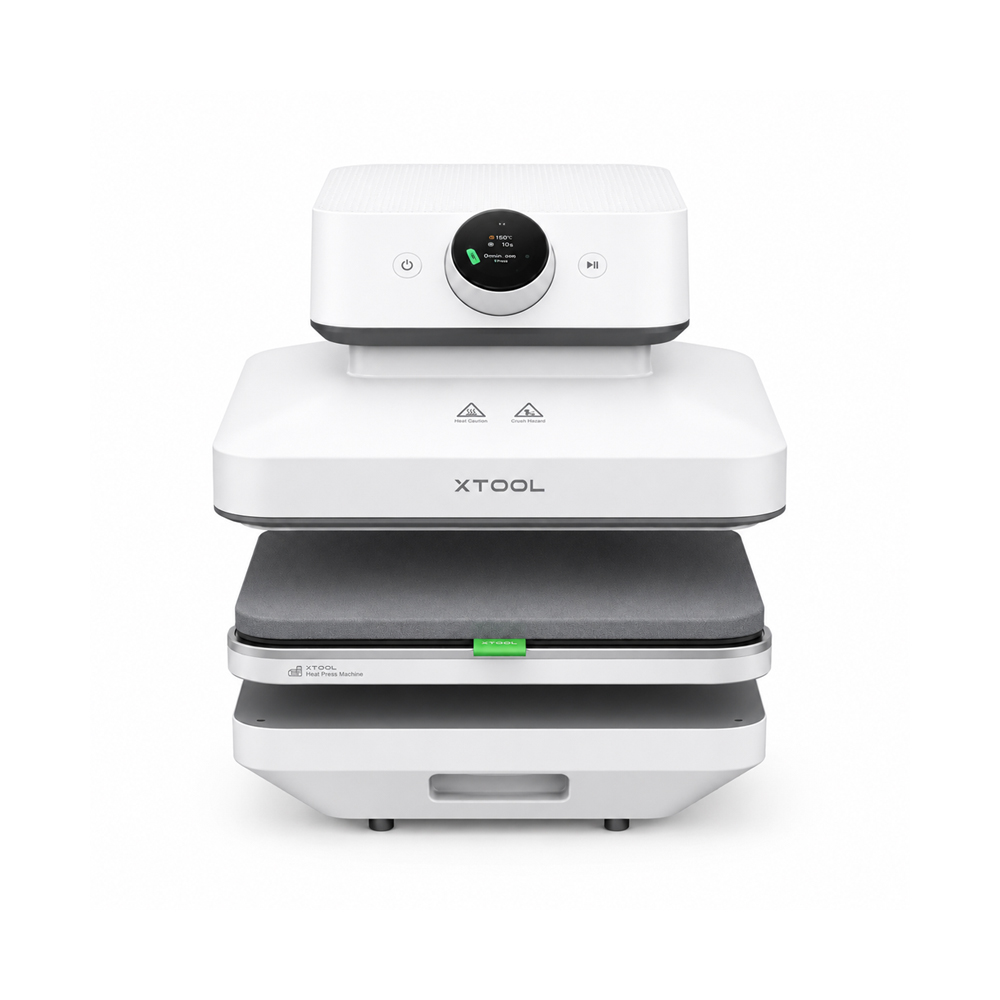

xTool WonderPress 3D Auto Heat Press | 3-in-1 Smart Heat Press, Vacuum Former & Craft Oven

The xTool WonderPress 3D Auto Heat Press – The First 3D Auto Heat Press with Switchable Creativity

Discover a new way to create with the xTool WonderPress 3D Auto Heat Press, the world’s first modular 3D auto heat press designed to grow with your creativity. Whether you create personalised clothing, DTF transfers, sublimation gifts, vacuum formed moulds or custom craft projects, the xTool WonderPress delivers professional results with remarkable ease. Unlike traditional heat presses that only perform one task, WonderPress allows you to switch between three powerful modules. As a result, you can expand your business or hobby without replacing your equipment. Simply start with the Heat Press Module today, and then add the 3D Form Module or Craft Oven Module whenever you are ready.

One Machine. Three Creative Possibilities.

The innovative modular design transforms the WonderPress into three different machines:

• Professional Auto Heat Press Module for heat transfer vinyl, DTF, sublimation and more.
• 3D Form Module for vacuum forming and full 3D sublimation on curved objects.
• Craft Oven Module for safe indoor DTF curing and baking applications.

Because every module has been designed specifically for the WonderPress platform, switching between functions is quick, simple and intuitive.

Professional Heat Press Performance

Unlike conventional presses, the xTool WonderPress 3D Auto Heat Press combines industrial performance with exceptional precision.

It features twice the heating density thanks to dual heating tubes. Consequently, heat spreads evenly across the entire platen without cold spots. At the same time, the automatic pressure system delivers up to 100kg of consistent force. Therefore, transfers bond deeper into fabrics for outstanding durability, vibrant colours and excellent wash resistance.

The generous 7.5cm opening easily accommodates hoodies, sweatshirts, tote bags, thick garments and layered materials that many standard presses simply cannot handle.

Furthermore, the smooth rotary dial and vivid 1.8-inch display allow you to adjust settings quickly, while the xTool Studio App provides cloud presets and remote control for even greater convenience.

Create Beyond Flat Surfaces

The optional 3D Form Module opens completely new creative opportunities.

Instead of being limited to flat materials, you can vacuum form custom moulds or apply seamless 3D sublimation onto curved products including phone cases, keycaps, badges and many other compatible items.

Using powerful industrial-grade suction reaching -90kPa, the machine wraps sublimation film tightly around complex shapes. As a result, designs transfer evenly across difficult surfaces that traditional heat presses simply cannot achieve.

For vacuum forming, the module also allows you to quickly create plastic moulds using TPU, PETG, HIPS and other compatible forming materials.

Safe Indoor DTF Film Curing

The optional Craft Oven Module removes the need for external ventilation.

Its advanced three-layer filtration system combines an H11 filter, activated carbon filter and H13 HEPA filter. Together, they capture up to 99.95% of fumes, smoke and odours produced during DTF curing.

Consequently, you can safely cure DTF transfers inside your workshop, craft room or home studio without requiring external extraction equipment.

The replaceable filtration system also ensures long-term performance.

Smart Controls Designed for Everyone

Whether you are completely new to heat pressing or already run a growing business, WonderPress keeps every project simple.

The machine includes 35 intelligent built-in presets which automatically change depending on the installed module. Therefore, only relevant settings appear, keeping operation clean and straightforward.

You can also control:

• Temperature
• Pressure
• Pressing time
• Module modes
• Saved presets

directly from the machine or through the xTool Studio App.

Open Material Compatibility

The xTool WonderPress 3D Auto Heat Press is not restricted to proprietary materials.

You can confidently use:

• Heat Transfer Vinyl (HTV)
• Sublimation paper
• Sublimation film
• DTF transfers
• Pre-made patches
• Infusible Ink
• PETG sheets
• TPU sheets
• HIPS sheets
• Standard vacuum forming plastics

While xTool materials are pre-cut for perfect fit and supplied with tested settings, standard compatible materials work equally well.

Upgrade Whenever You Want

Already purchasing the Heat Press Module?

No problem.

You can purchase the 3D Form Module and Craft Oven Module separately at any time. This allows your WonderPress system to expand as your business grows or your creative ideas evolve.

Heat Press Module Specifications

• Heat platen size: 15″ × 15″ (380 × 380mm)
• Temperature range: 80°C–210°C (176°F–410°F)
• Pressure range: 20–100kg (44–220lbs)
• Maximum clearance: 75mm
• Time range: 1–999 seconds
• Input voltage: AC 220–240V
• Rated power: 1500–1800W
• Frequency: 50/60Hz
• Machine dimensions: 418 × 549 × 410mm
• Weight: 22kg

3D Form Module Specifications

• Maximum vacuum pressure: -90kPa
• Vacuum forming area: Up to 203 × 254mm
• Maximum forming height: 90mm
• Maximum sublimation area: Up to 122 × 229mm
• Dimensions: 522 × 410 × 108mm
• Weight: 7.2kg

Craft Oven Module Specifications

• DTF curing area: Up to 432 × 432mm
• Chamber size: 398 × 158 × 80mm
• Built-in H11 filter
• Activated carbon filter
• H13 HEPA filter
• Dimensions: 465 × 465 × 140.7mm
• Weight: 4.4kg

Smart Control & Safety

• 1.8″ colour display
• Precision rotary control dial
• xTool Studio App compatibility
• 35 built-in smart presets
• Auto standby function
• Slide-out safety design
• PC/PBT body construction
• White finish
• Storage temperature: -20°C to 60°C

Frequently Asked Questions

Can I buy additional modules later? Yes. The Heat Press, 3D Form and Craft Oven modules are all available separately, allowing you to upgrade whenever you choose.

Does WonderPress have software? Yes. It works perfectly from the onboard controls while also supporting the xTool Studio App for remote control, cloud presets and easier workflow.

Do I need external ventilation for DTF curing? No. The Craft Oven Module includes an integrated three-layer purification system, making it suitable for indoor use.

Can the Craft Oven filters be replaced? Yes. Replacement HEPA and activated carbon filters are available separately.

Can I use non-xTool materials? Absolutely. WonderPress is an open platform compatible with most standard HTV, DTF films, sublimation media and vacuum forming sheets.

Do I need a printer? Not necessarily. Many WonderPress projects use HTV, pre-made transfers or vacuum forming without any printer. Alternatively, you can order ready-to-press DTF or sublimation transfers from third-party suppliers before investing in your own printer.

The xTool WonderPress 3D Auto Heat Press combines professional performance, modular flexibility and intelligent control into one powerful creative platform. Whether you are starting your first craft business or expanding a professional production studio, WonderPress delivers exceptional results today while providing endless possibilities for tomorrow.
