CURL-FREE.
TEAR-FREE.
EASY WEEDING.

The Electrostatic Mat^* holds thin materials in place rather than rollers or a sticky cutting mat. Thin materials will not tear or curl when removed.

BLOOM YOUR INSPIRATION

Beyond cutting and sketching, creators will have an expanded creative realm with additional tool choices.

PRODUCT OVERVIEW

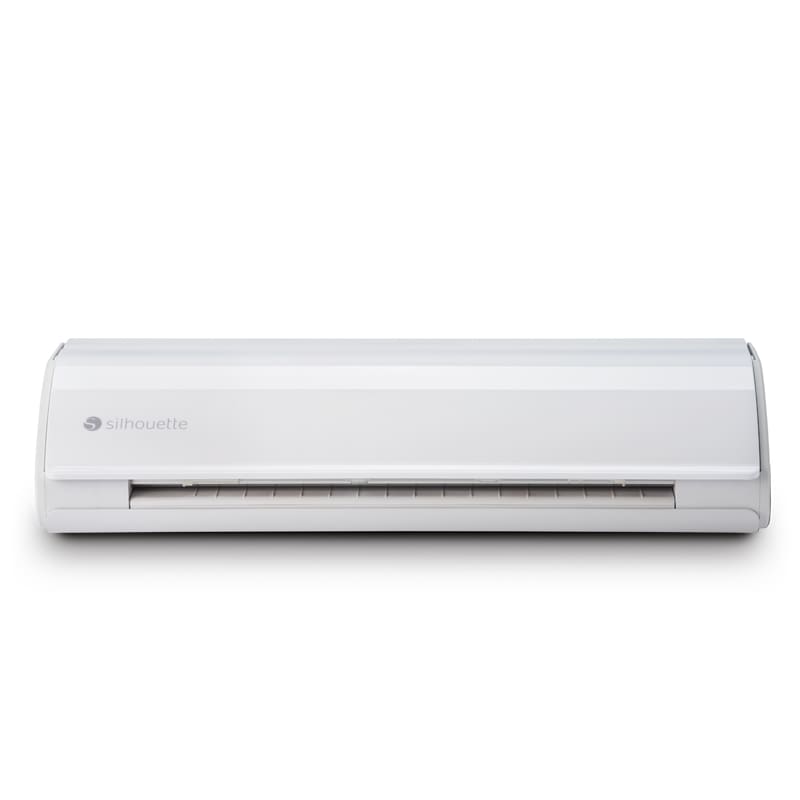

With all-new updated engineering, the Cameo 5 is the fastest, most accurate, and quietest machine in Silhouette’s lineup.

Machine features include:

• Power tool capability​
• Auto-cross cutting​ with the AutoBlade
• New reinforced roll feeder attachment​ (attachable)
• Quieter operation​
• Electrostatic mat​ (optional add-on accessory)
• Adjustable pinch rollers​ with improved grip strength and ability to customize the position
• Improved registration mark reading​ for Print & Cut jobs
• Smooth opening lid architecture​
• Full 12-inch cutting width​
• Cut up to 16 feet in length
• Matless cutting capabilities ​
• 3 mm height clearance for thicker materials​
• Automatic tool detection​
• Wireless cutting with Bluetooth® connectivity​
• PixScan™ compatible​
• Driven by Silhouette Studio® giving you limitless design options to customize your projects​

WHAT’S INCLUDED

Silhouette Cameo® 5​
AC Adapter/Power cable set​
Cutting Mat​
AutoBlade​
Blade adjustment tool
Roll Feeder​
Silhouette Studio® software (download)​
100 exclusive designs (available with registration)
1-month Silhouette Design Store subscription (available with registration)

TECH SPECS

• Cutting Area: 12 in. x 24 in. with a cutting mat, 11.6in. x 16 ft. with lined material (when using Roll Feeder)
• Maximum Material Thickness: 3 mm (118.11 mils) ​Maximum Cutting Force:​ – Tool Holder 1: 300 gf (+/-20gf)​ – Tool Holder 2: 5 kgf (highest in machine class)​Interface: USB 2.0 (FULL-speed) / Bluetooth®
• Unit Dimensions: 22.28 in. x 4.89 in. x 6.94 in. (56.6 cm x 12.4 cm x 17.6 cm)​
• Unit Weight: ​11 lbs 2.1oz (5.05 kg)
• Shipping Dimensions: 24.80 in. x 10.75 in. x 9.45 in. (63 cm x 27.3 cm x 24 cm)​
• Shipping Weight: 16 lbs 13.1oz (7.63kg)​
• Warranty: One year parts and labor (Limited to USA and Canada only)​
• Requires Silhouette Studio® software version: 4.5.700 or higher​
• Minimum System Requirements: Windows 10 or later, macOS X 11 or later
