Maxmake 1-Flute Flat Mill 3.175mm x 22mm (1pk) – O-Flute CNC Router Bit for HiMill D1 & D1S
Precision CNC Milling Bit for HiMill D1 and HiMill D1S CNC Machines
The Maxmake 1-Flute Flat Mill 3.175mm x 22mm is designed specifically for smooth, accurate and reliable CNC cutting on the Maxmake HiMill D1 and HiMill D1S CNC Machines. Because this premium O-Flute CNC router bitfeatures a sharp single flute design, it delivers cleaner cuts, faster chip removal and a smoother finish on non-metallic materials.
In addition, the polished flute design helps prevent heat build-up. Therefore, materials stay cleaner while the cutter stays sharper for longer. As a result, this solid carbide CNC end mill is perfect for makers, hobby users and professional CNC operators who want dependable cutting performance every time.
This 1/8″ shank CNC bit fits perfectly with compatible CNC collets used on the Maxmake HiMill range. Consequently, setup stays simple and cutting remains stable even during longer jobs.
Premium Solid Carbide O-Flute End Mill Features
Solid Carbide CNC Router Bit Construction
- Premium solid carbide construction
- Ultra sharp cutting edge
- Extended tool life
- Excellent wear resistance
- Stable and smooth CNC cutting
Mirror Polished O-Flute Design
The mirror polished flute design improves chip evacuation while also reducing clogging. Therefore, acrylics and plastics cut cleaner with less melting or edge marking.
Single Flute CNC Bit for Faster Chip Removal
Because the cutter uses a single flute up-cut spiral design, chips clear quickly and efficiently. In turn, this allows cleaner cuts at higher feed rates.
Best Materials for the Maxmake 1-Flute Flat Mill
This single flute CNC router bit works best with non-metallic materials including:
- Acrylic
- ABS
- PVC
- Plastic sheets
- MDF
- Soft wood
- Foam board
- Carbon fibre sheets
- Composite materials
Furthermore, the up-cut spiral design helps lift chips away from the cut path. As a result, edge quality improves while reducing heat build-up.
Materials NOT Compatible with This CNC End Mill
Although this O-Flute CNC cutter offers excellent performance on plastics and wood, it is NOT designed for:
- Hardened steel
- Stainless steel
- Titanium
- Cast iron
- Stone
- Ceramic
- Glass
In addition, using this CNC bit on very hard metals may damage the cutting edge and shorten tool life significantly.
Why Choose the Maxmake 1-Flute Flat Mill 3.175mm x 22mm?
If you need a reliable CNC router bit for acrylic, plastics or soft woods, this Maxmake cutter is an excellent choice. Not only does it deliver smooth finishes, but it also reduces clogging and improves cutting consistency.
Because this cutter is optimised for the HiMill D1 CNC Machine and HiMill D1S CNC Machine, users benefit from stable cutting performance and excellent accuracy.

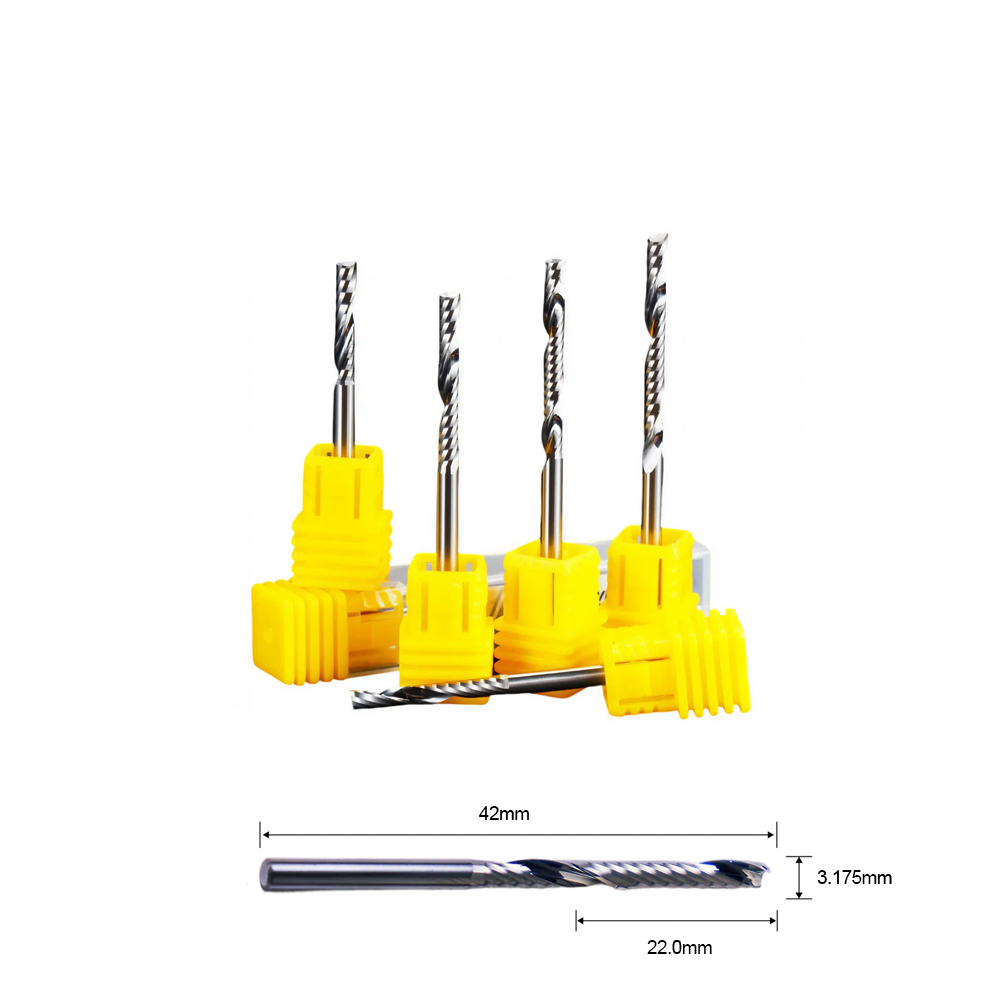

Technical Specifications
Maxmake CNC Router Bit Specifications
- Product: Maxmake 1-Flute Flat Mill
- Size: 3.175mm x 22mm
- Quantity: 1 Pack
- Flute Type: Single Flute (O-Flute)
- Cut Direction: Up-Cut Spiral
- Shank Size: 1/8″ (3.175mm)
- Material: Premium Solid Carbide
- Use: Non-metallic materials only
