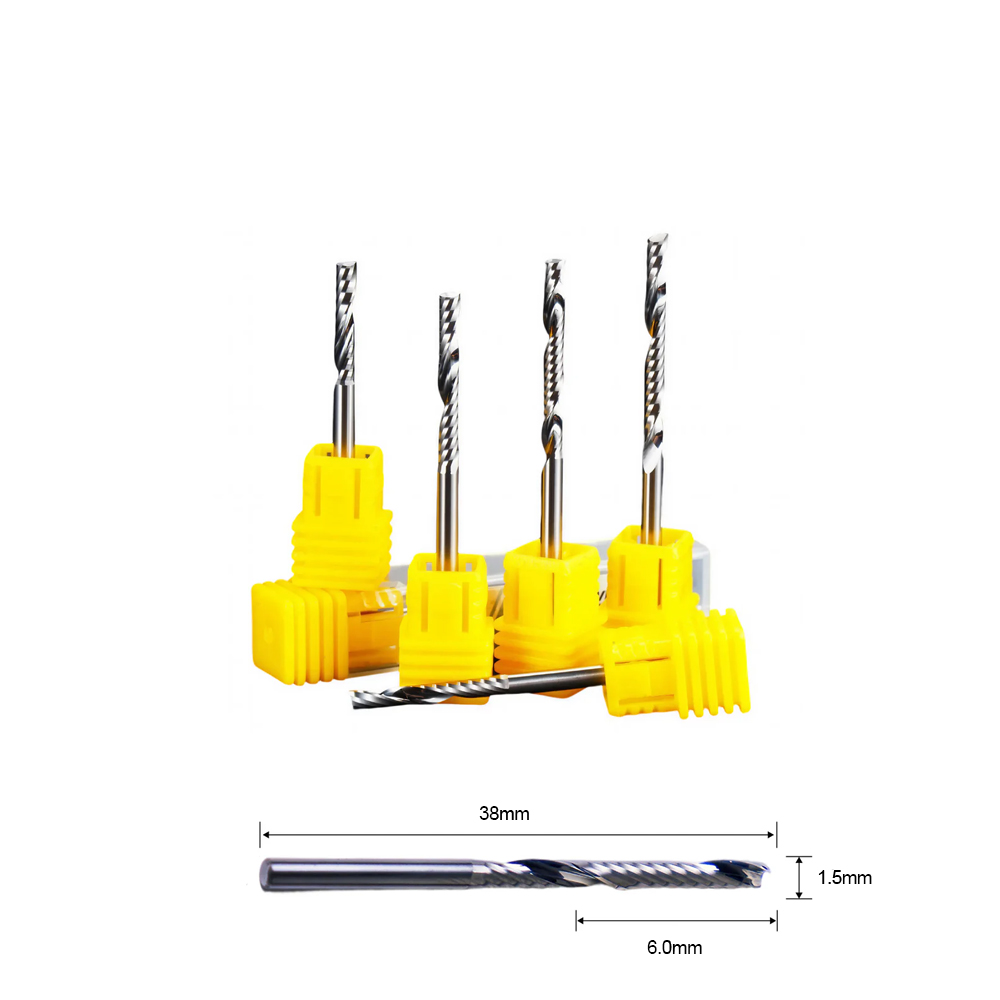

Maxmake 1-Flute Flat Mill 1.6mm x 6mm (1pk) – Solid Carbide O-Flute CNC End Mill for HiMill D1 & D1S

Precision 1-Flute CNC End Mill for HiMill D1 & D1S Machines

The Maxmake 1-Flute Flat Mill 1.6mm x 6mm is a premium quality solid carbide O-Flute end mill designed for clean, fast, and accurate cutting on the Maxmake HiMill D1 and HiMill D1S CNC machines. Because this CNC router bit uses an advanced single flute up-cut spiral design, it delivers smoother cuts, faster chip removal, and improved surface finishes on a wide range of non-metallic materials.

In addition, the ultra sharp cutting edge helps reduce heat build-up while improving cutting efficiency. Therefore, this bit performs exceptionally well during detailed CNC milling, engraving, profiling, and pocket cutting applications.

Whether you are producing hobby projects, signage, acrylic parts, or precision CNC models, this 1-flute flat mill for HiMill D1 and D1S offers reliable and consistent results every time.

Premium Solid Carbide CNC Router Bit Features

Solid Carbide Construction

This solid carbide CNC end mill delivers excellent rigidity and durability. As a result, you benefit from improved cutting precision and longer tool life.

Ultra Sharp O-Flute Cutting Edge

The sharp single flute geometry cuts material quickly and cleanly. Furthermore, it helps reduce vibration and improves edge quality.

Mirror Polished Flute Design

The polished flute surface improves chip evacuation significantly. Therefore, chips clear faster and clogging becomes far less likely.

Smooth Up-Cut Spiral Performance

The up-cut spiral design pulls chips upward efficiently. Consequently, you achieve cleaner grooves, better slotting performance, and smoother cutting paths.

Extended Tool Life

Because the tool uses premium carbide materials, it withstands wear far better than lower quality alternatives.

Designed for the Maxmake HiMill D1 & D1S CNC Machines

This Maxmake CNC router bit is specifically designed for use with the:

• Maxmake HiMill D1 CNC Machine
• Maxmake HiMill D1S CNC Machine

Thanks to its 1/8” shank compatibility, installation is quick and easy. In addition, the precision-balanced design supports stable high-speed cutting performance.

You can explore compatible machines and accessories here:

• CNC Machines
• CNC Accessories
• CNC Router Bits

Best Materials for This 1-Flute Flat Mill

This O-Flute CNC end mill is designed primarily for non-metallic materials. It performs extremely well on:

• Acrylic
• ABS
• PVC
• Foam board
• MDF
• Hardwood
• Softwood
• Plywood
• Carbon fibre sheets
• Plastics
• Composite materials

Because the single flute design removes chips quickly, it is especially effective on acrylic and plastics where heat build-up often causes melting.

Materials NOT Compatible with This CNC Bit

This 1-flute flat mill is NOT designed for heavy metal machining. Therefore, do NOT use this cutter on:

• Hardened steel
• Stainless steel
• Titanium
• Cast iron
• Tool steel
• High-carbon steel

Using this CNC bit on unsuitable metals may cause premature wear, tool breakage, poor finish quality, or overheating.

Technical Specifications

Maxmake 1-Flute Flat Mill Specifications

• Cutting Diameter: 1.6mm
• Cutting Length: 6mm
• Shank Size: 1/8”
• Flute Type: Single Flute (O-Flute)
• Cutting Style: Up-Cut Spiral
• Material: Premium Solid Carbide
• Quantity: 1 Pack
• Application: CNC Milling & Engraving
• Compatible Machines: HiMill D1 & HiMill D1S

Why Choose the Maxmake 1-Flute O-Flute End Mill?

The Maxmake 1-flute CNC router bit combines clean cutting performance, excellent chip evacuation, and long-lasting durability. Moreover, its specialised O-Flute geometry makes it ideal for plastics, acrylics, wood, and composite materials.

If you want cleaner edges, smoother cuts, and reliable CNC machining results, this solid carbide 1-flute end mill is an excellent choice for your HiMill D1 or D1S setup.
